Stainless Wool Muffler Packing: Alloy, Fiber Grade and Supply Form

A quotation for stainless wool muffler packing is incomplete when it states only a roll weight and a temperature limit. The alloy identifies the metal. The fiber grade describes the metallic strands. The supply form determines what the exhaust factory receives and what preparation remains before assembly.

Keep those three specifications separate when buying replacement material or approving a new supplier. Two rolls can have the same outside dimensions and net weight while differing in fiber construction, usable length and the component that can be made from them.

BSTFLEX offers stainless steel wool exhaust muffler packing, roll-format material and prepared core sleeves. This guide focuses on comparing quotations and establishing receiving checks for repeat OEM orders.

What Does Grade Mean on a Steel Wool Quotation?

The word grade can describe the alloy or the fineness of the wool. A description such as medium-grade stainless packing does not establish both. Ask the supplier to complete separate fields rather than treating a single grade label as a full material specification.

Put the Wool Alloy on Its Own Material Line

AISI 434 is used in commercial stainless steel wool products for exhaust applications, but the general description stainless wool does not guarantee that grade. Put the required designation on the inquiry and ask the supplier to identify the proposed material before comparing prices.

Where engineering specifies another alloy, request confirmation that it can be supplied in the required fiber construction. Availability as wire, sheet or mesh is not confirmation of availability as wool. An alternative alloy should be identified as a proposed substitution, not silently incorporated into a repeat order.

For a composite part, list the wool and supporting metal separately. The BSTFLEX steel wool muffler core sleeve combines wool with 304 stainless steel woven wire cloth. The wire-cloth designation must not be copied into the wool specification without separate confirmation.

Request the agreed material declaration or test documentation and define the link between it and the supplied production lot. A generic material brochure is useful for selection, but it is not the same document as a shipment-specific record.

Define Fine, Medium and Coarse with Measured Fiber Dimensions

For stainless steel wire wool muffler packing, a fineness description becomes useful when it includes the measured dimension, acceptable range and measurement method. Do not assume that two suppliers use identical boundaries for fine, medium or coarse.

Metallic fibers are not necessarily round wires. Some manufacturing processes produce non-circular cross-sections. Ask whether a quoted micron value refers to width, thickness, an equivalent diameter or another defined measurement. A single number without that definition can make unlike fibers appear identical.

Also identify fiber-length characteristics, any mechanical bonding and the condition in which the material is supplied. For a trial, retain an approved material reference and record the dimensional information rather than relying only on how soft or springy the sample feels.

Finer wool should not automatically be treated as a better exhaust material. Evaluate the selected fiber construction with the required wool quantity, installed coverage and complete silencer. Neither a fine nor a coarse label establishes a particular noise reduction or service life.

Specify Material Condition Alongside the Alloy

State any cleanliness, residue or foreign-material limits required by the exhaust program. Ask whether processing aids, surface treatments or supporting materials form part of the supplied product, and how they are identified in the technical documentation.

A requirement for steel wool muffler packing should not be fulfilled simply by matching the appearance of a general-purpose cleaning or polishing product. Specify the approved stainless material and condition. Any cleaning, coating or conditioning step should follow the agreed material and assembly instructions rather than an improvised workshop treatment.

Select the Supply Form by the Work Remaining at Your Factory

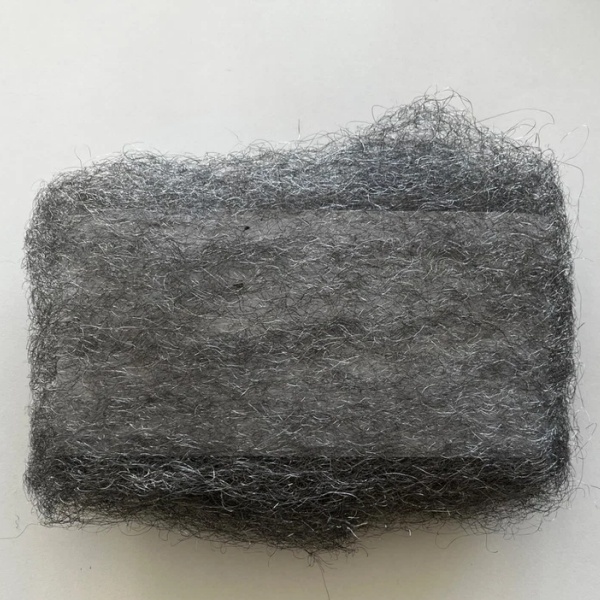

Material for In-House Preparation

Use the stainless steel wool packing product as the starting point when your factory will weigh, form or wrap the material. State how it should be delivered and which operations your line performs. The term bulk describes an ordering or packaging arrangement; it does not tell the supplier how the fiber will be installed.

For bulk stainless steel wool exhaust packing, define the net material quantity, package identification and the requirement per finished silencer separately. One bag or carton is an inventory unit, not an installation quantity.

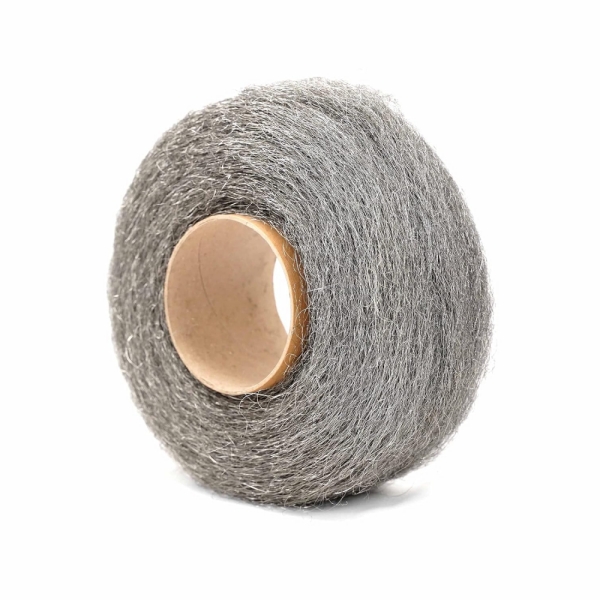

Rolls and Reels for Controlled Cutting

The BSTFLEX stainless steel wool muffler packing reel is a roll-format option for in-house cutting and wrapping. For purchasing, specify usable width, mass per unit length, net wool weight and any length or splice requirements relevant to your cutting process.

A roll's outside diameter depends on its core and winding condition as well as the material. Do not use it as the sole quantity check. Identify the reel or tube tare separately and agree how the material is measured without stretching or compressing it unpredictably.

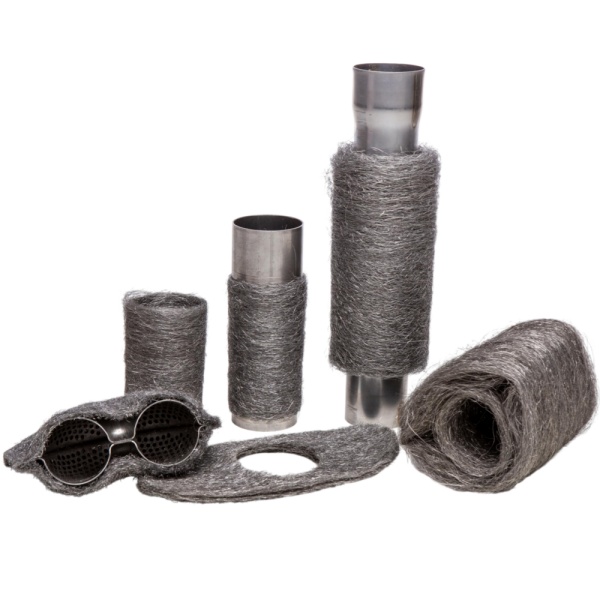

Prepared Core Sleeves

A custom muffler core sleeve moves some forming and assembly work to the supplier. Its specification should include core fit, coverage length, wool quantity, installed layer thickness, supporting cloth and fastening details.

Keep total component weight separate from wool weight. A supporting mesh or tie adds mass without adding more wool. Where the design choice itself remains open, use the existing core wrap versus retaining screen comparison to distinguish the components before issuing a purchase order.

Convert Roll Mass per Meter into an Inspectable Cut Piece

For a uniform wool strip supplied to an agreed linear mass:

Wool mass per cut piece = cut length × wool mass per unit length.

As an arithmetic example only, a strip specified at 200 g/m and cut to 0.60 m contains a nominal 120 g of wool. These figures are hypothetical, not a BSTFLEX standard specification or a recommended quantity for a muffler. The cutting orientation, coverage and final fit still need approval.

For a strip of constant usable width, areal mass can also be calculated by dividing grams per meter by width in meters. That result is expressed in g/m², not kg/m³. Neither linear nor areal mass is the same as installed bulk density.

Agree the sample length and handling method for incoming measurements. An acceptable average across an entire reel does not prove that every short piece contains the required amount. Set a sampling plan and limits appropriate to the cutting operation, and account for any supporting layer separately.

Match Thermal Data to the Supplied Wool

For high temperature stainless steel wool muffler packing, provide the sustained operating conditions, short peaks and the location where temperatures are measured. Include the intended duty cycle and relevant gas or condensate exposure.

Ask what the proposed material rating represents and whether the evidence concerns the wool itself or a different material form. A rating for solid metal, a supporting cloth or another fiber construction is not automatically a rating for the supplied packing assembly.

The existing stainless steel wool muffler packing guide covers the wider service considerations. In a purchasing specification, link the selected grade to the agreed operating and validation requirements instead of using one temperature number for every order.

Give Receiving Inspection a Defined Acceptance Basis

Inspection should verify the approved specification rather than decide at goods receipt which material the factory needs. Agree the required records, measurement conditions and acceptance limits before production supply begins.

Separate a specification failure from a change in the intended application. Material supplied correctly to an old drawing may still need new validation when the core geometry, exhaust duty or surrounding acoustic filling changes.

Compare Cost per Approved Part, Then Control Changes

A material roll and a finished sleeve should be compared after accounting for the wool consumed per accepted silencer, usable yield, cutting, forming, supporting components and inspection. A lower kilogram price does not establish a lower component cost.

Approve the trial assembly against fit, retention and the exhaust program's acoustic requirements. Record the material reference, wool quantity and layer arrangement associated with the accepted result. An alloy declaration alone does not demonstrate the performance of the finished muffler.

For repeat orders, agree which changes require notification or renewed approval. These may include alloy, fiber fineness, bonding method, linear mass, supporting cloth and component dimensions. Keep the sample reference, drawing revision and packaging specification consistent with the released order.

Stainless Wool Purchasing Questions

Is stainless wool muffler packing the same as stainless steel wool silencer packing?

The names can refer to the same material family, but neither defines the alloy, fiber grade or delivered form. Compare those fields before treating quotations as equivalent.

Does a heavier stainless steel wool roll provide more usable packing?

Only the net material quantity is directly comparable. Reel tare, width, mass per meter and required cut dimensions determine how much usable material reaches your production parts. Compare both the quantity and the approved construction.

Must the wool use the same alloy as its supporting mesh?

Not necessarily. They are separate constituents that must match the approved assembly specification. Identify each material independently rather than applying the mesh designation to the entire component.

Request a Material, Roll or Core-Sleeve Quotation

Send BSTFLEX the required alloy or existing material reference, fiber specification, supply form and order quantity. For roll material, add usable width, net quantity and any linear-mass requirement. For prepared components, include the core dimensions, coverage length and layer arrangement.

State the operating conditions and documents needed for sample or supplier approval. Unknown requirements can be marked for development; they should not be replaced by unconfirmed material assumptions.

Use stainless steel wool exhaust packing for the material option, or discuss drawings and repeat-order requirements through the BSTFLEX OEM muffler packing manufacturing service. Other material families and components are available in the Muffler Packing product range.
